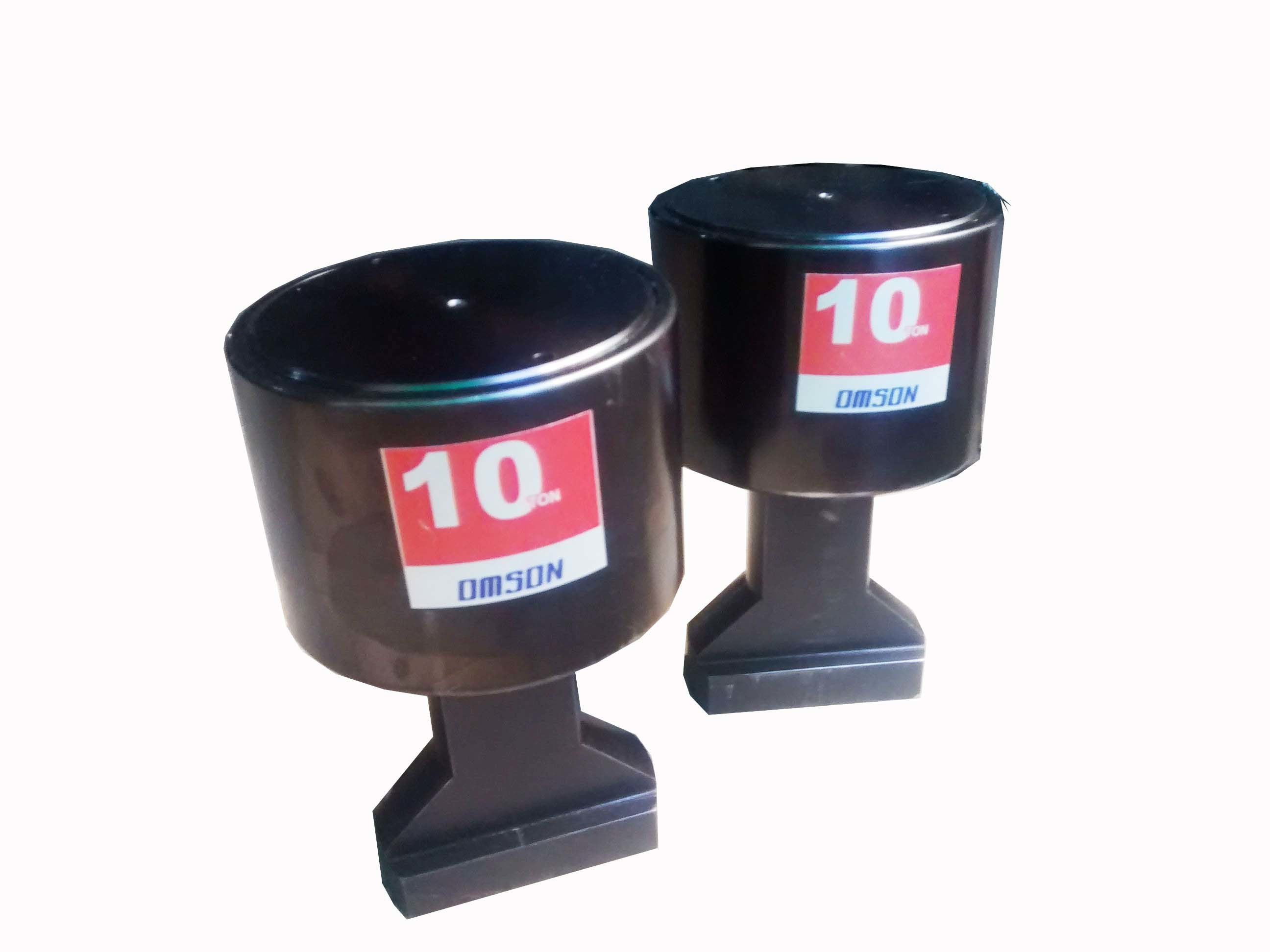

Die Clamp

Name: Die Clamp
Brand: OMSON HYDRO SOLUTIONS
Price: 12000 INR
Availability: InStock

Price 12000 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Die Clamp Specification

Metal Type
Steel

Density
7.85 Gram per cubic centimeter(g/cm3)

Material Grade
EN24

Weight
0.8 kg

Tensile Strength
1100 MPa

Material
Alloy Steel

Structure
Forged

Standard
IS 4594-1968

Shape
Rectangular

Die Clamp Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
3-4 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Boxes

Main Export Market(s)
North America, Eastern Europe, Africa, Central America, Middle East, South America, Western Europe, Asia, Australia

Main Domestic Market
All India

About Die Clamp

We offer this Die Clamp to our valued clients in customized sizes, styles and shapes as per their needs. Having accurate dimension and rugged construction, the provided clamp is ideal to be used in hardware, manufacturing and other industries. Also, this clamp is perfect to be installed in the machines for increasing productivity and ensuring safer operation. In addition to this, the offered Die Clamp is coated with powder and paint to ensure its corrosion resistant nature.

Key points:

Quick and easy die changing
Very high clamping pressure
High opening and closing speeds

Product Details

Model	KTA-1	KTA-2	KTA- 4	KTA- 6	KTA-10	KTA-16	KTA-25
Clamping force(at 250kgf/cm) ton	1	2	4	6	10	16	25
Full stroke (mm)	5	8	8	8	8	8	8
Clamping stroke (mm)	3	5	5	5	5	5	5
Safety stroke (mm)	2	3	3	3	3	3	3
Cylinder capacity at full stroke (cc)	2	6.5	13	21	32	54	84

Precision Engineering for Enhanced Performance

The Die Clamp is engineered using high-grade EN24 alloy steel, guaranteeing long-lasting performance under rigorous industrial conditions. With a precise tolerance of 0.02 mm and a tensile strength of 1100 MPa, it ensures secure and consistent die clamping in press machines, making it a preferred choice for tool rooms and manufacturing units seeking precision.

Optimal Surface Protection

Available in either blackodised or polished finish, the Die Clamp offers exceptional resistance to corrosion. This allows the clamp to retain its structural integrity and appearance, even in harsh environments or amid frequent use, significantly reducing maintenance needs and extending its operational life.

FAQs of Die Clamp:

Q: How do I properly use the Die Clamp in press machine operations?

A: To use the Die Clamp, manually mount the clamp onto the designated die on your press machine, ensuring the clamping capacity (2060 mm) matches the die thickness. Tighten the clamp evenly so it secures the die firmly without exceeding tolerance. This ensures a stable and precise operation during pressings.

Q: What benefits does the blackodised or polished finish provide?

A: The blackodised or polished finish protects the Die Clamp from corrosion, making it suitable for use in environments exposed to moisture, chemicals, or frequent handling. This surface treatment enhances durability and preserves the clamps appearance, reducing maintenance and extending service life.

Q: When should I consider replacing my Die Clamp?

A: Consider replacing your Die Clamp if you notice signs of significant wear, deformation, loss of clamping capacity, or if the tolerance is no longer maintained. Regular inspections can help identify these issues early, ensuring continuous precision and safety in your press operations.

Q: Where can the Die Clamp be sourced in India?

A: Die Clamps are widely available throughout India via authorized dealers, distributors, exporters, manufacturers, service providers, suppliers, and wholesalers. It is important to source from reputable vendors to ensure product authenticity and adherence to IS 4594-1968 standards.

Q: What is the manufacturing process behind the Die Clamp?

A: Each Die Clamp is manufactured using forging techniques with EN24 alloy steel, which is then heat-treated to achieve a hardness of 4550 HRC. The product is finished with either a blackodised or polished coating and undergoes stringent quality checks to meet referenced standards and tolerances.

Q: How does the Die Clamp ensure corrosion resistance and durability?

A: The Die Clamps alloy steel composition, combined with its blackodised or polished surface finish, provides a high level of corrosion resistance. Its forged structure and robust hardness ensure it withstands mechanical stress, high operating temperatures, and long-term use with minimal degradation.
